A new module MODULATION CLASSIFIER has been included as beta version. The functions and modes found in this module will be increased overtime. Currently two commands are available: StartReceiverScan and StopReceiverScan these are sent by the LAN for further custom purposes. This option will be improved in a later version with a full description of commands.
Audio recording is always activated when this module is running, but with ‘temp hold’ on by default.
The calculation and output of this module can also be sent by LAN to allow further processing in a customer application.
CW or Carrier

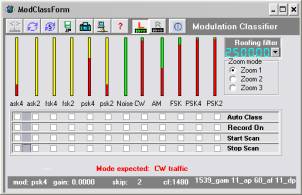

CW Traffic

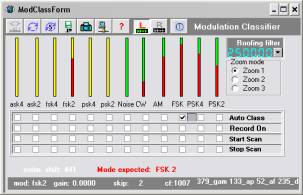

FSK

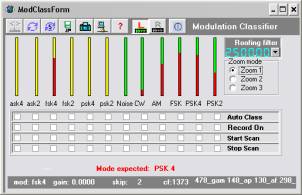

PSK 4
If a FSK2 or FSK4 signal is detected, the estimated shift is also shown. Activating the AutoClass module will measure the baud speed also and will further classify the signal. If activated, a jump into the recognized signal is possible.
