Output can be shown Binary and this bit pattern can be send by LAN also.

Extensive search- and sort functions are available to enable Inmarsat monitoring without the need of other additional programs or tools. Selection on all EGC's is possible to show all Navigation and Meteo messages in good order. The status line shows the tuned channel number and frequency, Ocean Regio, Coast Earth Station and LCN ID in clear text.

Even here is no special receiver or an IF output requested, a scanning receiver with SSB demodulator is all you need to start. A modern software receiver like the famous SDR-14, preferred by our company, makes monitoring (and life) much easier, in our case it is connected to an wideband IF output of the VHF receiver and shows a part of the SAT spectrum as a panoramic display and receiver. BTW: on shortwave this SDR-14 is an ideal solution, it is fully supported by CODE300-32 and will be fully integrated in our users interface. More news follows

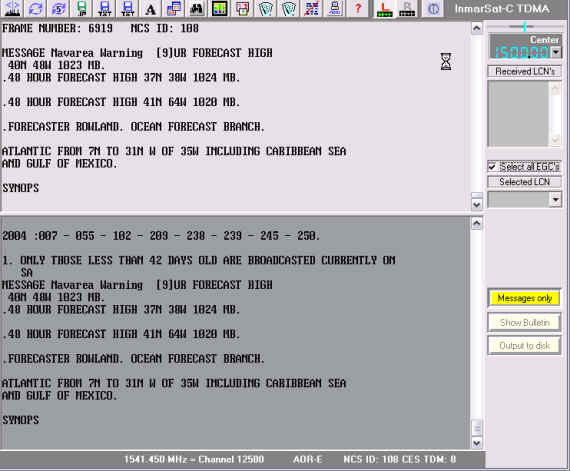

This example shows a Navarea warning, only the clear text messages will be stored in the lower screen.

This example selects all LCN’s with 71 and stores only these messages into the lower screen for further processing.

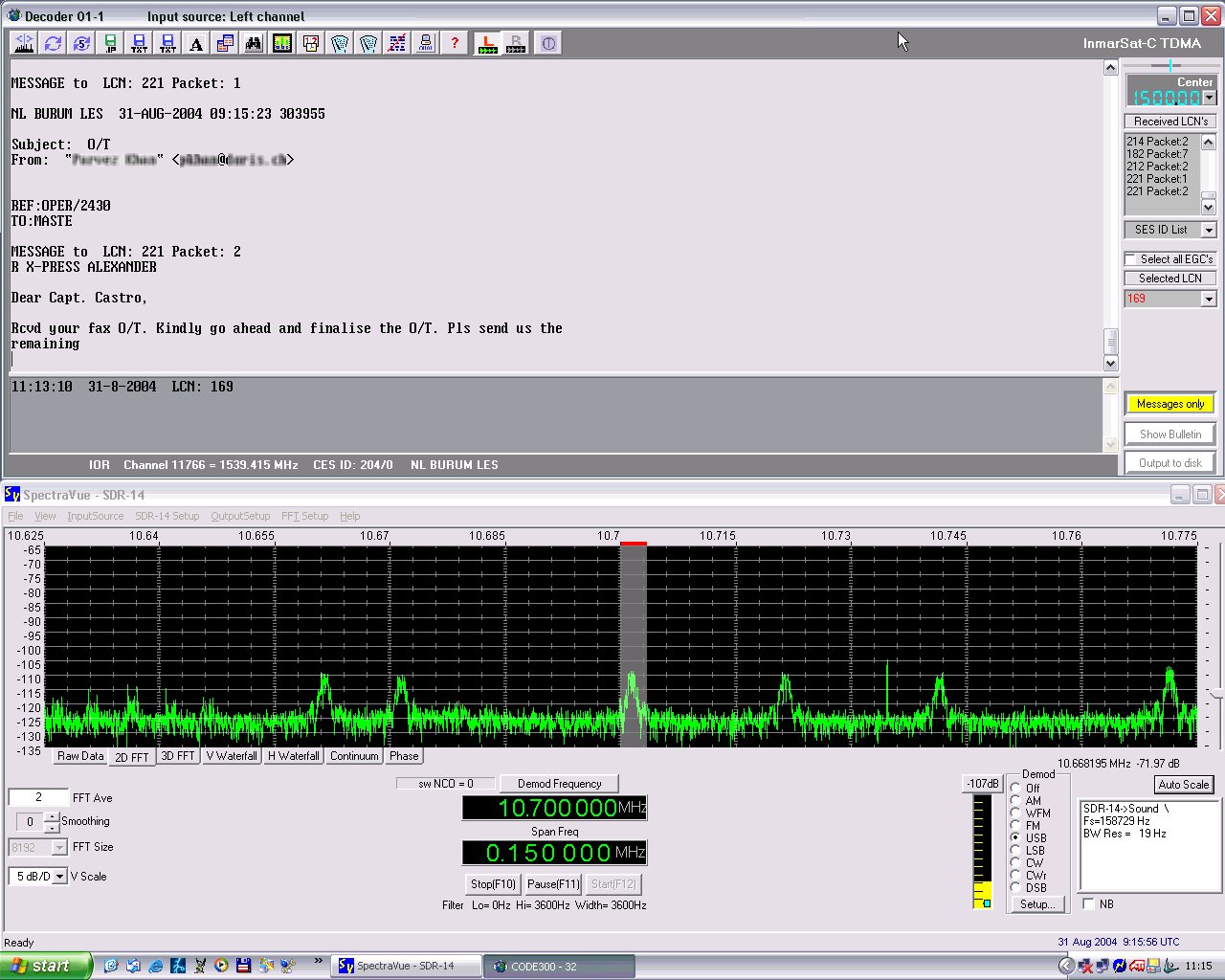

SDR-14 connected to an IF output shows a 150 Khz wide spectrum with a few active Inmarsat-C channels.

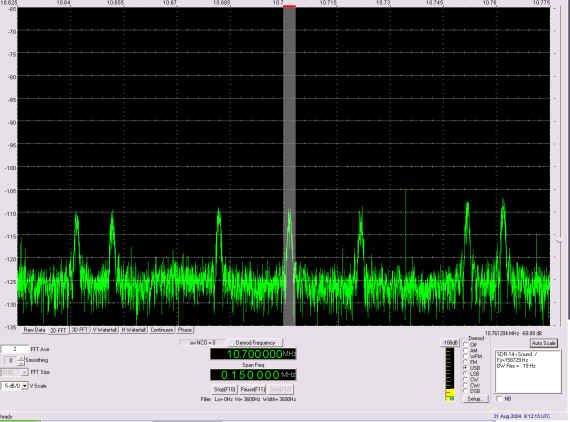

SDR-14 connected to an IF output shows a 150 Khz wide spectrum with a few active Inmarsat-C channels. Do you want to see high-res pictures ? clck here !
